ACL to block MAC-ADDRESS

Switching
1

Hello guys,

Please, I need block a mac-address for my customer, my question:

Is it possible create a acl similar acl cisco for block one mac-address?

Thanks, Rafael

2

Yes you can using below

policy condition c1 source mac 9C:8C:D8:C9:59:88 policy action a1 dispositon drop policy rule r1 condtion c1 action a1 qos apply



3

Hello, team.

Unfortunately it didn't work!

In this command part, (policy rule r1 condtion c1 action a1 qos apply), there was an error in this part.

See.

LAB-CCO-SW-> policy rule r1 condition c1 action a1 qos apply ^ ERROR: Invalid entry: "qos"

LAB-CCO-SW->



4

My switch is an Alcatel OS6560-P48Z16, version 8.7.2.R02.

5

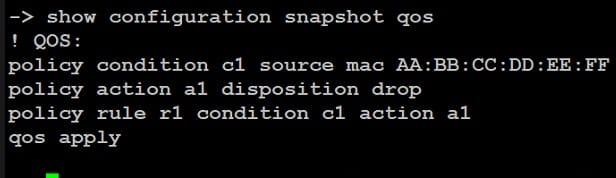

The policy rule r1 condition c1 action a1 qos apply ^ ERROR: Invalid entry: "qos" is because Policy rule r1 condition c1 action a1 and Qos Apply should not be entered on the switch in a single line. Please see the screenshot attached.


Attachments:

6

It's worked, thanks a lot!

Bellow the commands step-by-step.

policy condition c1 source mac dc:08:56:a8:e8:20 policy action a1 disposition drop policy rule r1 condition c1 action a1 qos apply
