AP location not updating in OV2500

Network management
1

Hi,

Even after configuring LLDP for location in switches, still AP location in OV2500 not updating and showing as per attached image.

AP_location_issue
AP_location_issue1118×460 81 KB

Regards,
Riyas

2

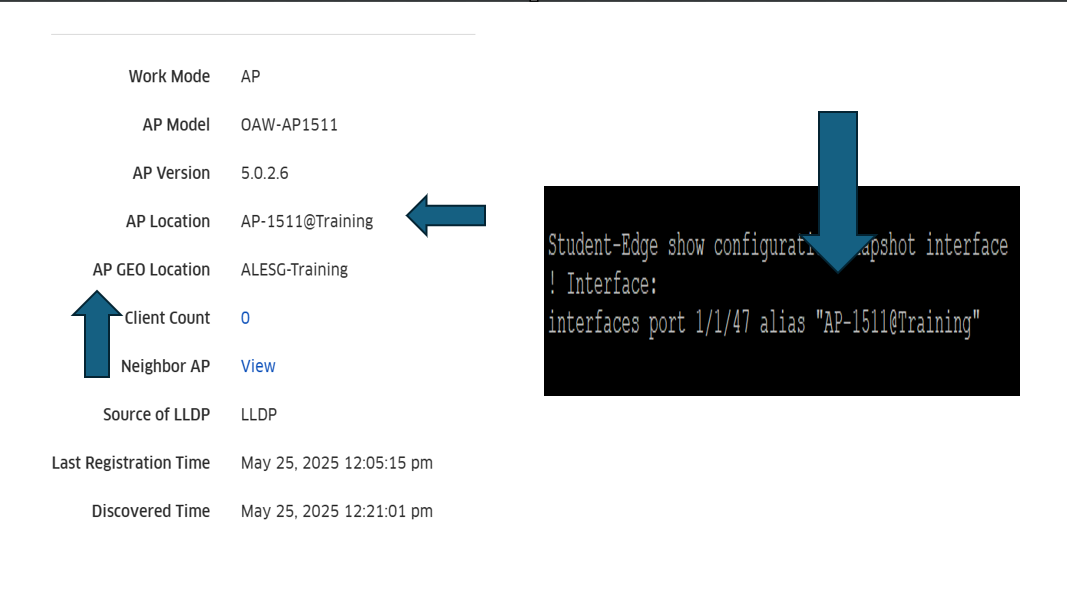

AP location deals with Port number on the Switch or Alias name of
the switch port. You want Geo Location, you need to enable it on Access Point Basic parameters.

image1067×605 64.6 KB

3

Hi,
Thanks for your reply.

AP location should show with “system name” as shown in below image along with port on the switch for example “GF-IDFA-SW GNI 3/1/1” instead of “Alcatel Lucent OS6560 GNI 3/1/1”. I have seen in some deployments.


4

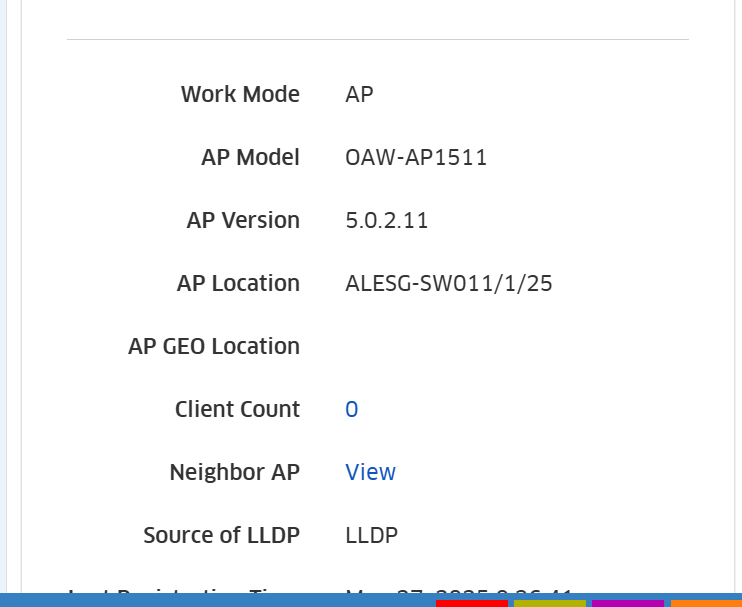

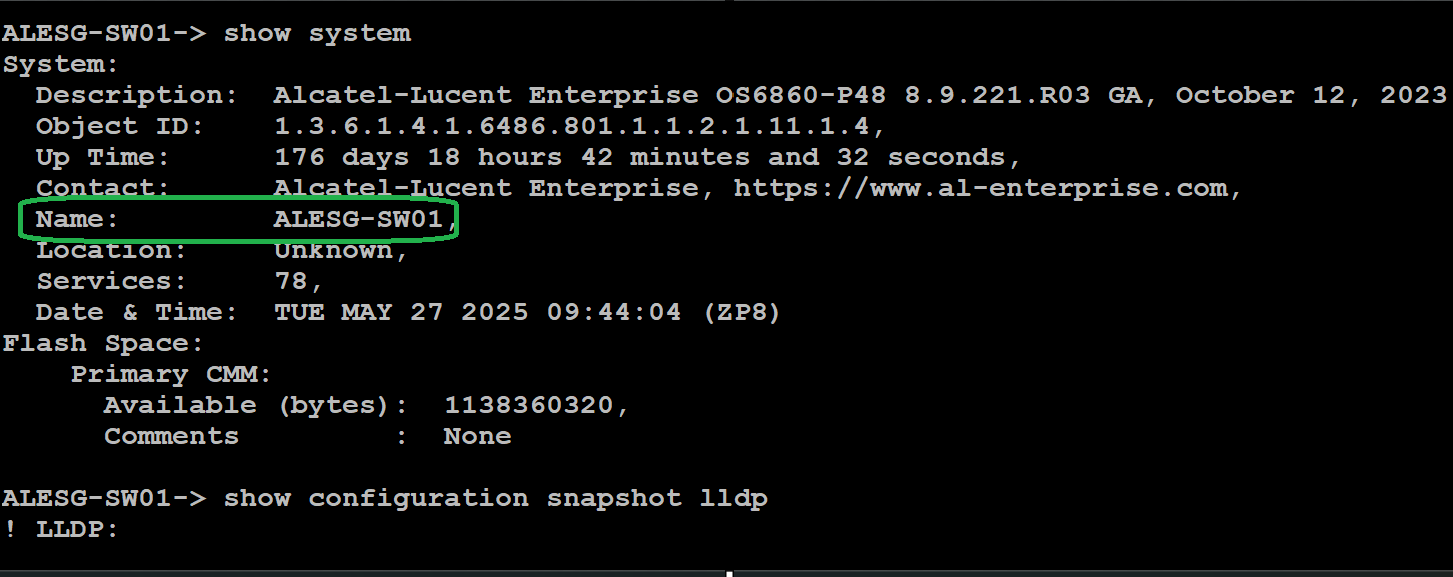

Hi I am able to see the System name.

image1453×577 22.8 KB

image1621×679 34.1 KB

image742×607 20.1 KB

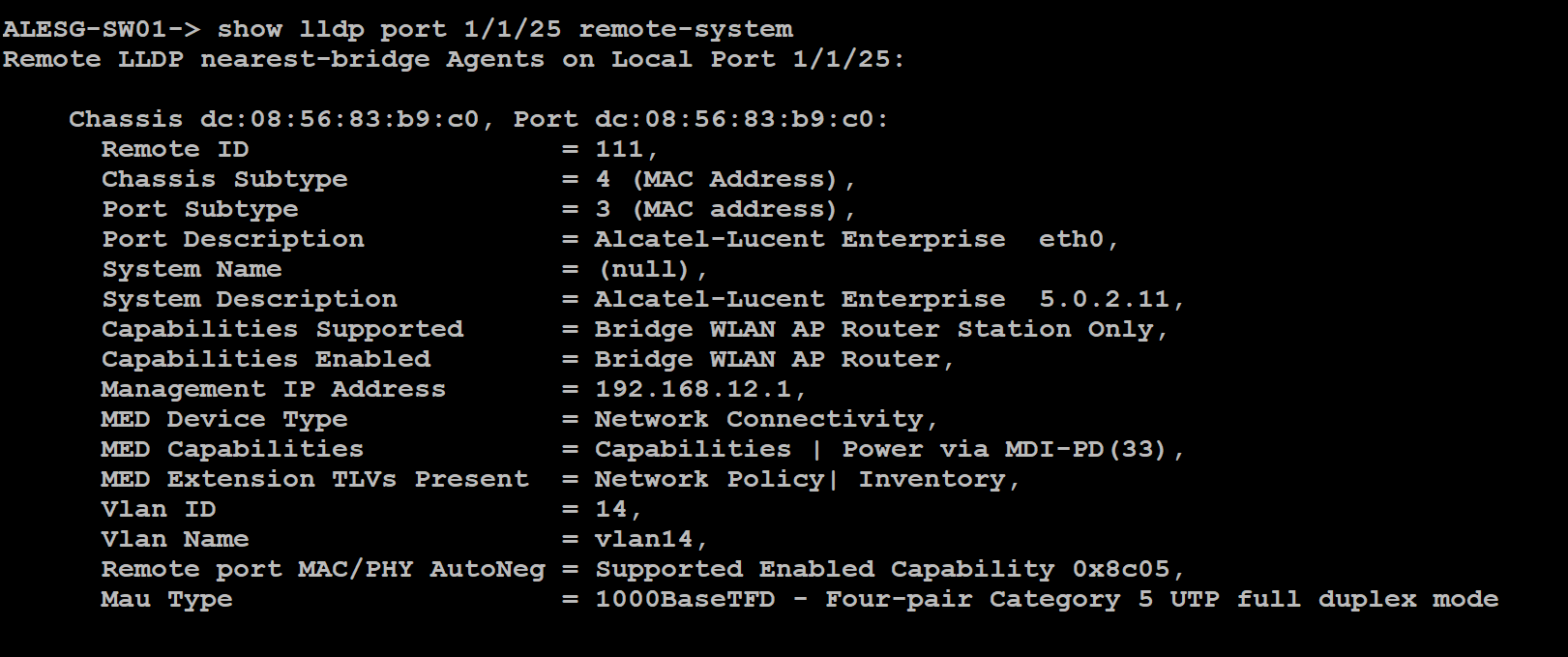

From your output I see LLDP port-description is enabled but not system name

You can try to add below LLDP configuration on the 6560 to advertise System-name and see it helps.

lldp nearest-bridge chassis tlv management port-description enable system-name enable
