Questions about configuration OSPF on OS6560.

Switching
1

Hi team, goodmorning!

I need to configure a ospf on omniswitch OS6560, but I depareted me a error when I went to create the area 0. "LAB-CCO-SW01-> ip ospf area 0.0.0.0

This error is showed: "ERROR: This feature is not supported"

Please, if someone has got any script, i´m thanfull!

Regards, Rafael Silva

2

Hello Rafael,

Please try to load and enable OSPF before creating the areas.

-> ip load ospf
-> ip ospf admin-state enable

Thanks,

3

Hi,

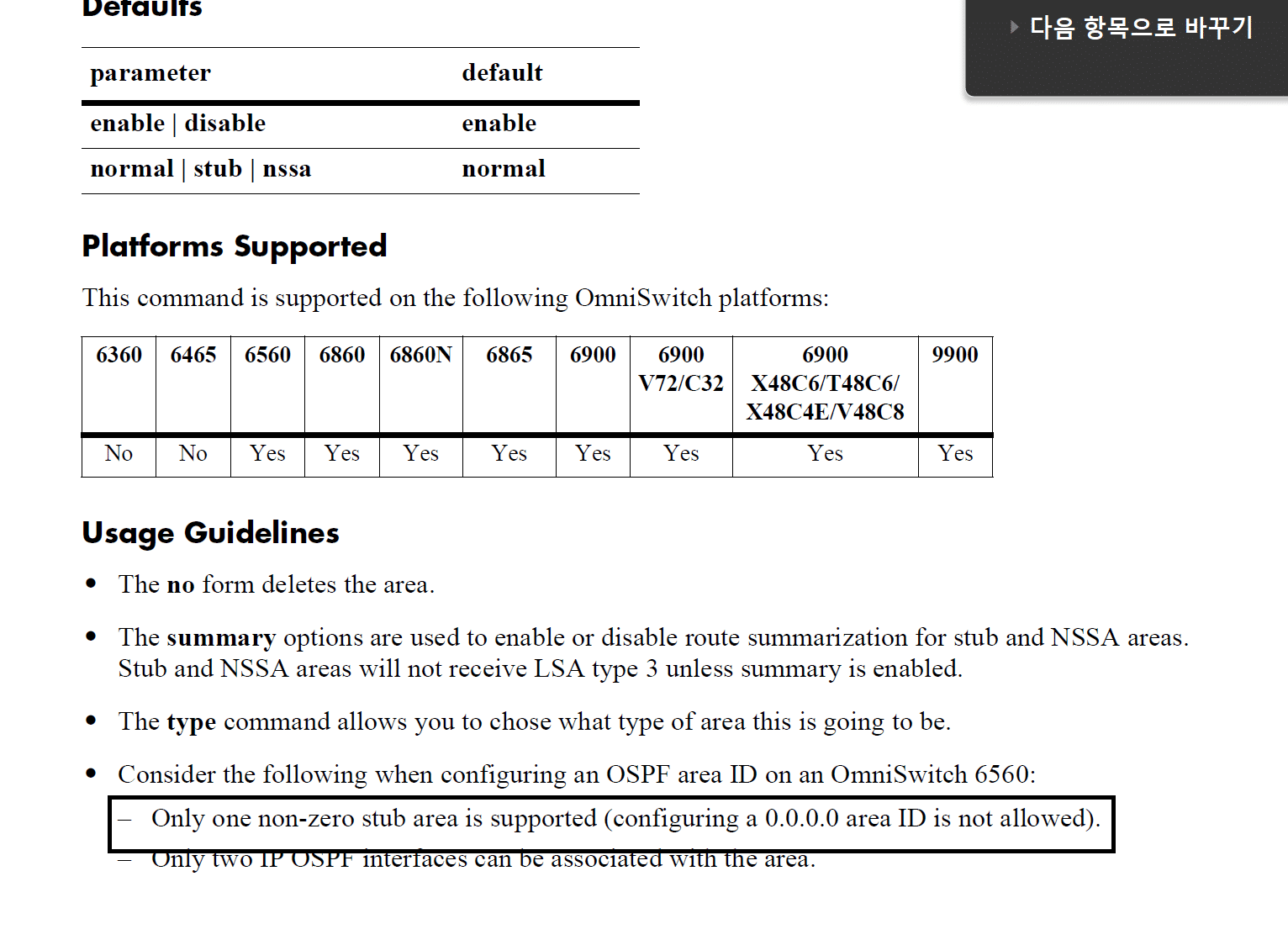

Only one non-zero stub area is supported on OS6560 switch (configuring a 0.0.0.0 area ID is not allowed).




Attachments:
